Περιγραφή
● Premium AX3000 Wi-Fi 6● Shielded 2.5G Port for Multi-Gig Throughput● Maximum 512 Clients with 512 MB Large RAM● Five Antennas for Broader Wi-Fi Coverage● 802.3at/af PoE, Passive PoE, or DC Powering● Mesh with Cudy Mesh Router / AC● Config Radius Server for AAA Feature● PoE Adapter Included
Hardware Features
Highlights
CPU: 1.3 GHz Dual-Core ARM CPU
Flash: 256 MB NAND (2 Gbit)
DDR: 512 MB DDR4 (4 Gbit)

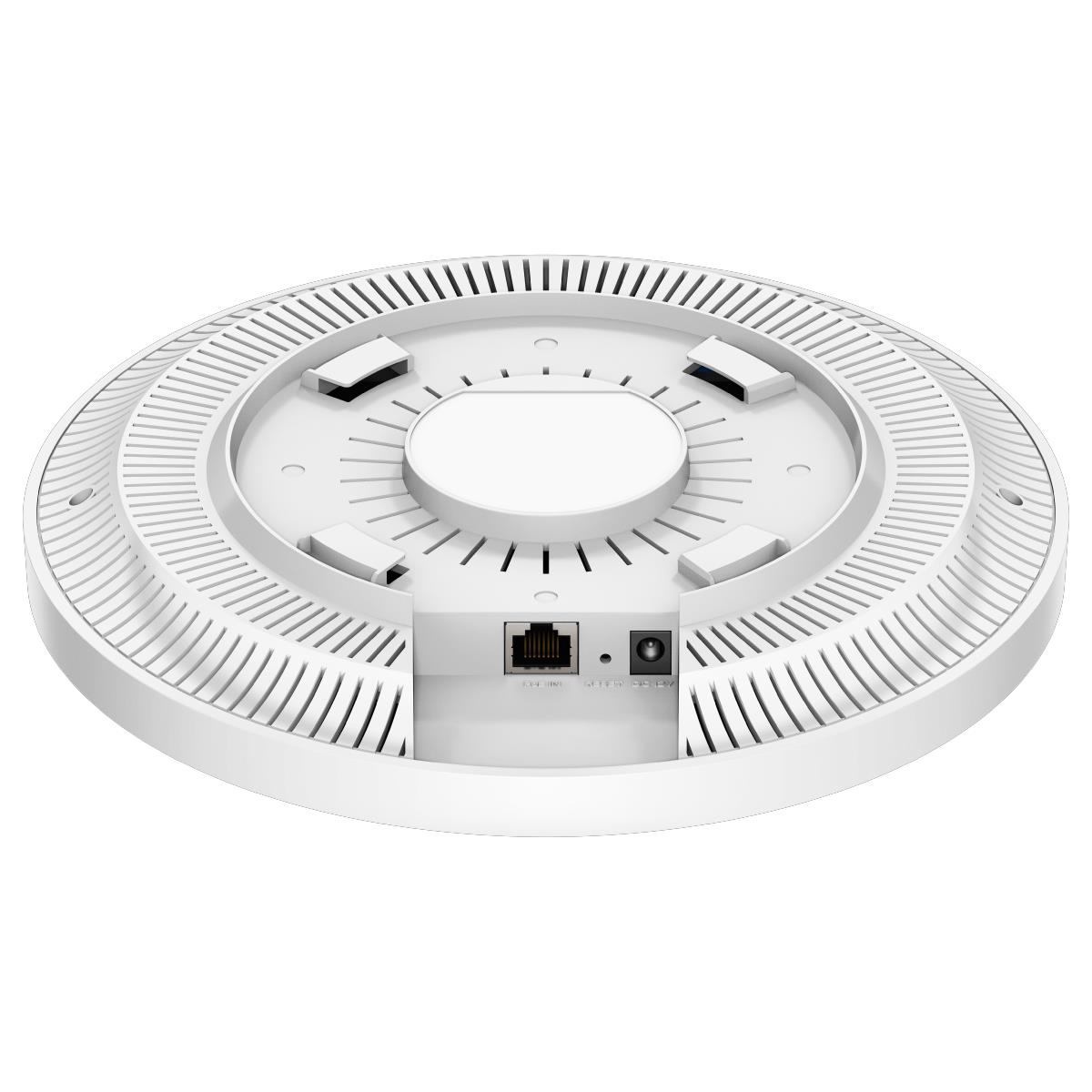

Interface
1× 2.5 Gbps Ethernet Port (PoE In)
1× Reset Button
1× DC Jack
Power Supply
802.3af/at PoE
48-57 V Passive PoE (+4,5pins; -7,8pins)
12 V ⎓ 1.5 A DC
Power Consumption
PoE Idle: 5.7 W
12 V DC Idle: 6.1 W
PoE Max: 12 W
12 V DC Max: 11 W
48 V DC Max: 12 W
Dimensions (Dia.×H )
Φ231.9×57.1 mm (Φ9.13×2.25 inches)
Antenna Type
4× Internal Omni-directional Antennas
Mounting
Ceiling/Wall Mounting (Kit included)
Wireless Function
Wireless Standards
Wi-Fi 6 (802.11ax/ac/n/g/b/a)
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 571 Mbps
Channel Width
20/40/80/160 MHz
Wireless Functions
(Features with * require a Cudy AC as the gateway. Cudy AC is coming soon)
(Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway)
Multiple SSID *
Captive Portal **
Seamless Roaming Mesh
Self-Organizing Mesh
Band Steering *
Auto Channel Optimization *
Enable/Disable Wireless Radio
Transmit Power Control
QoS (WMM)
MU-MIMO
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Encryption
WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE
Security
(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)
IP/MAC Filtering
AP Isolation*
Operating Modes
Wireless Access Point Mode
Wireless Router Mode
Wireless Extender Mode
WISP Mode
Package Content
Access Point
PoE Adapter
Mounting Kit
Installation Guide
Environments
Operating Temperature: 0~40 °C (32~104 °F)
Storage Temperature: -40~70 °C (-40~158 °F)
Operating Humidity: 10~90% RH non-condensing
Storage Humidity: 5~90% RH non-condensing
System Requirements
Windows, MAC OS, NetWare, UNIX, or Linux
Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser
A fiber/cable/DSL Modem, or other devices providing wired internet
Subscription with an internet service provider for internet access
A power socket for AC power supply, or PoE power supply
Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023.
Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.
