Περιγραφή
Support IEEE802.3at and IEEE802.3af Standard120W PoE power output totally，up to 32W for one PoE portSupport IEEE802.3x full duplex and half duplex flow controlSupport VLAN and CCTV FunctionPanel lights to monitor working state and help fault analysisPerfect security mechanismLine-speed forwarding intelligent identification
Model

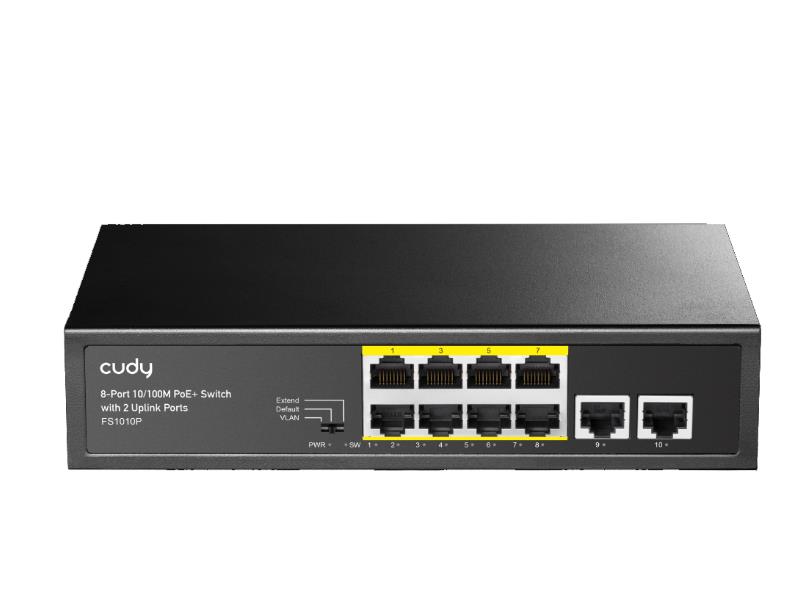

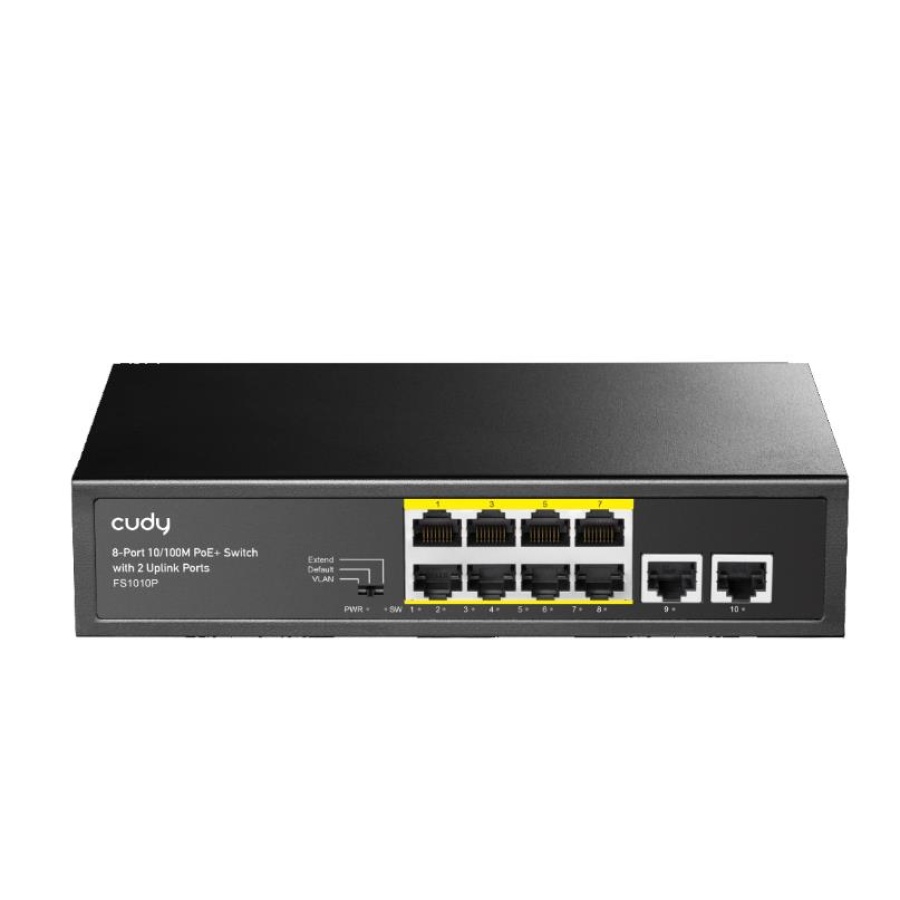

FS1010P
PoE standard
IEEE802.3af/at
Interface
10*10/100Mbps The RJ45 port through consultationa
Key function

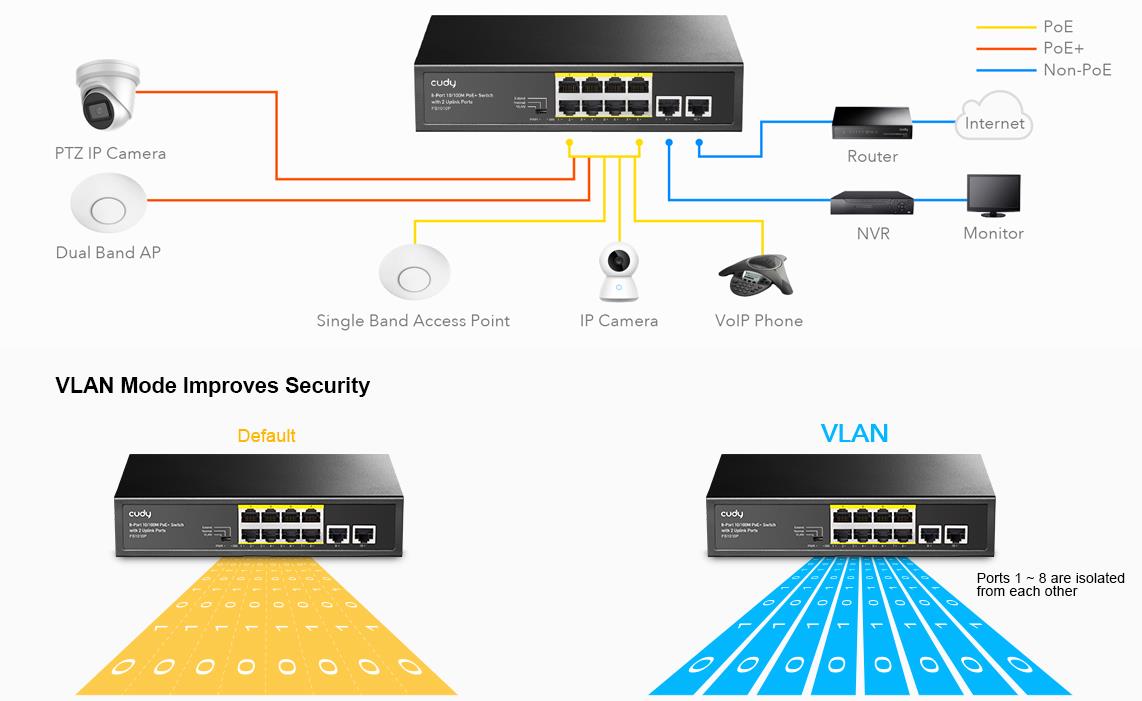

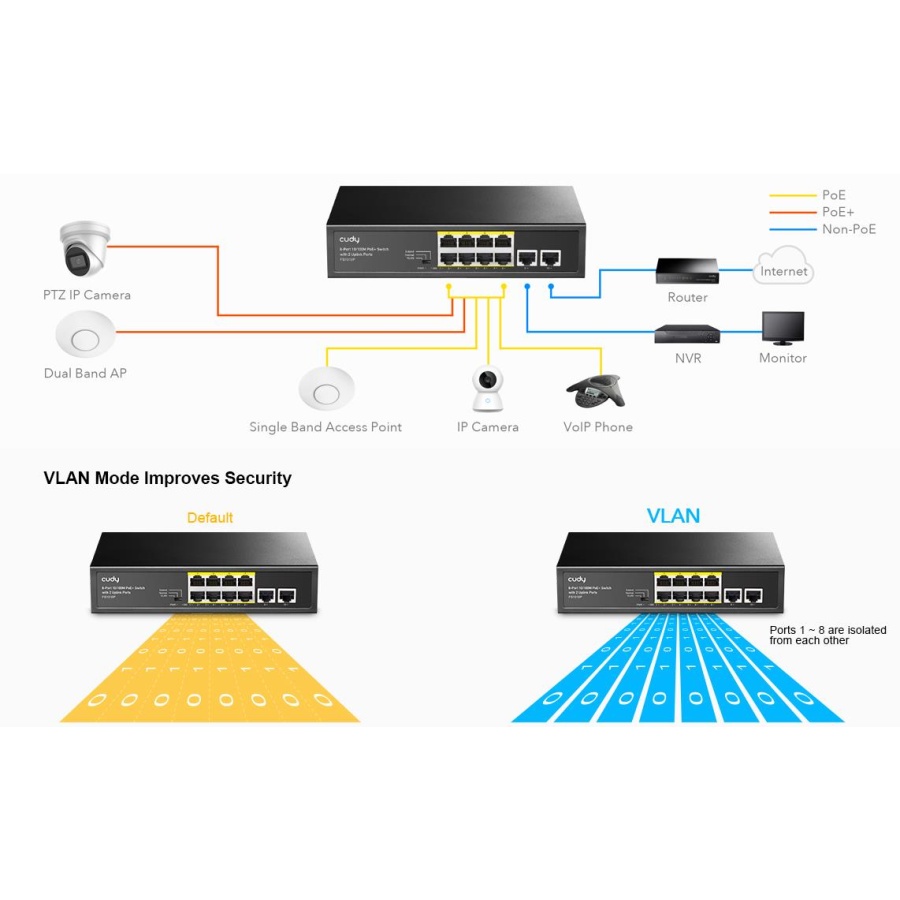

CCTV&VLAN
PoE port
1~8 port
PoE Total
120W
Power supply
120W
RJ45 PoE power supply
Mode A Anode1/2 Cathode3/6
PoE output-port
Max 32W
Indicator
PWR, LNK/ACT, PoE
Network media
10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)；
MAC Address Table
8K, Automatic study, automatic updates
Jumbo frame
1528Bytes
Packet buffer
2M bit
Transfer Mode
Store-and-forward
Packet forwarding rate
1.48Mpps
Bandwidth
2M bit
Fan
Fanless
Device Dimension
200*118*44mm
Machine Weight
>1kg
Green energy saving
Support IEEE（802.3az)

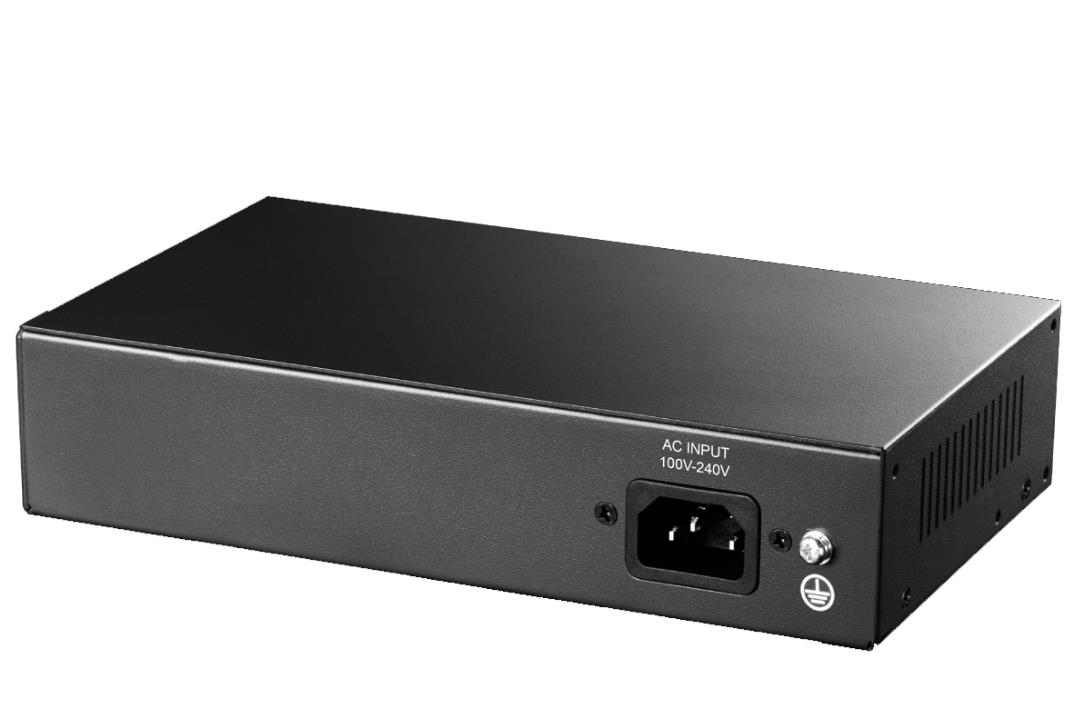

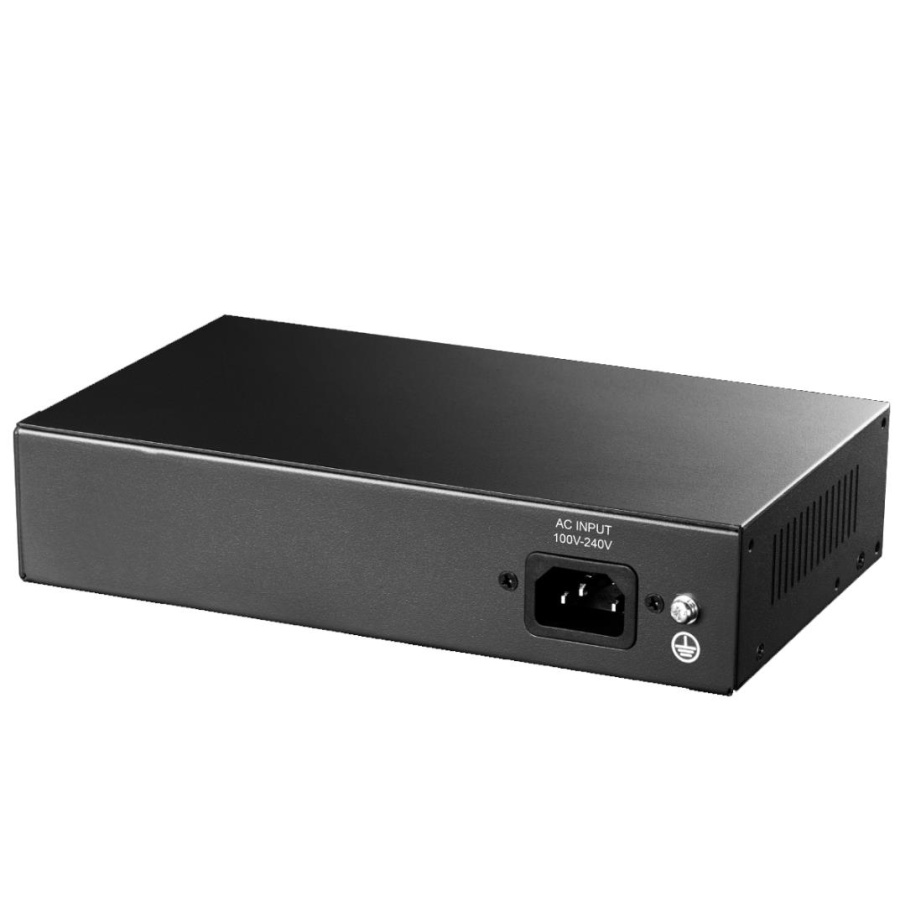

Mains Input
100~240V AC， 50/60Hz
Operating Temperature
0°C ~ 40 °C
Storage Temperature
-40 °C ~ 70 °C
Operating Humidity
10% ~ 90% non-condensing
Storage Humidity
5% ~ 90% non-condensing
Surge Protection
±4KV
MTBF
>50000 hour
Electrostatic standard
Contact 4KV, air 6KV
