Περιγραφή

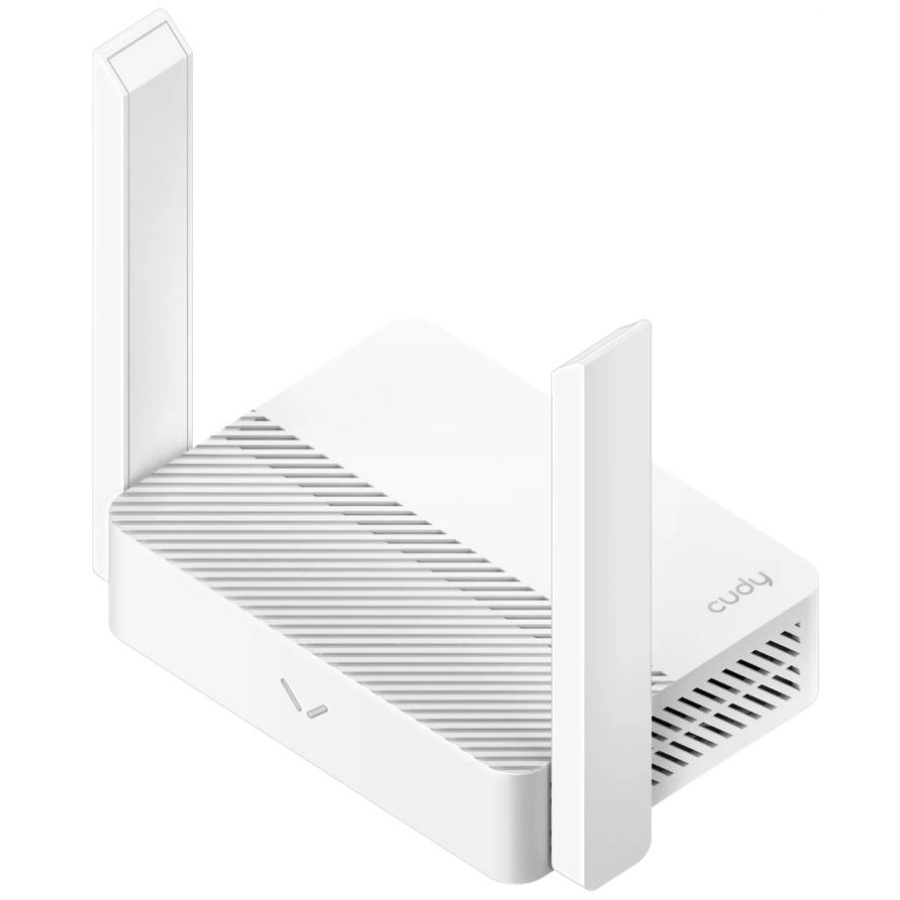

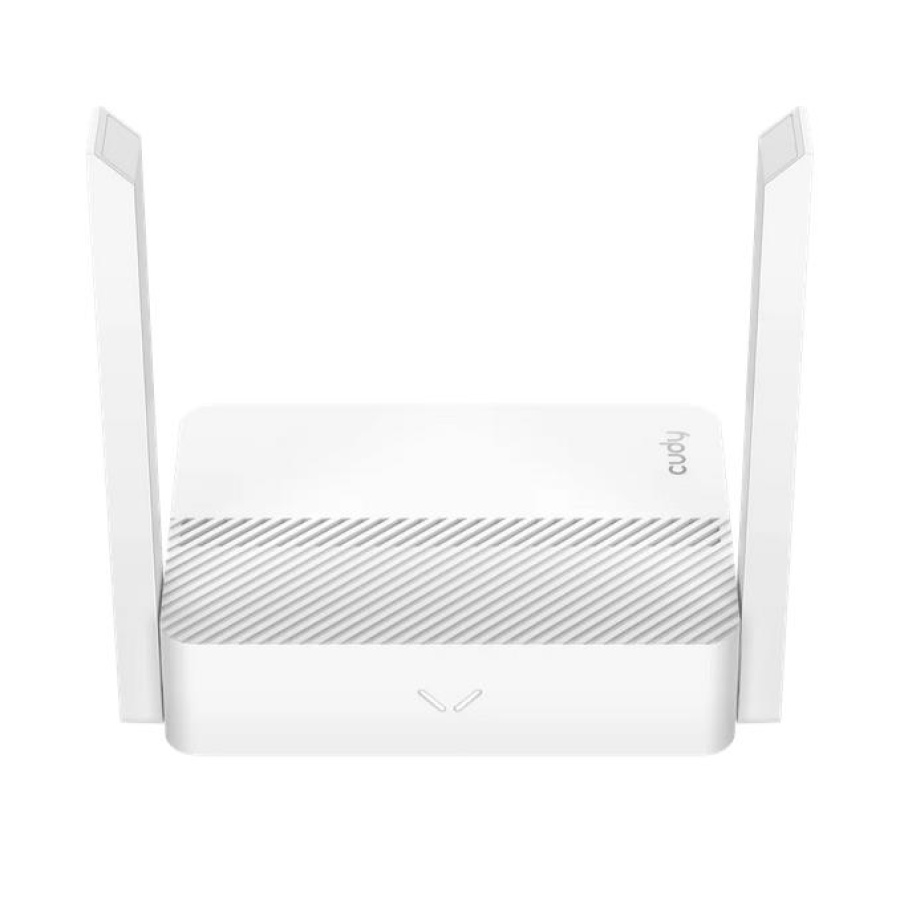

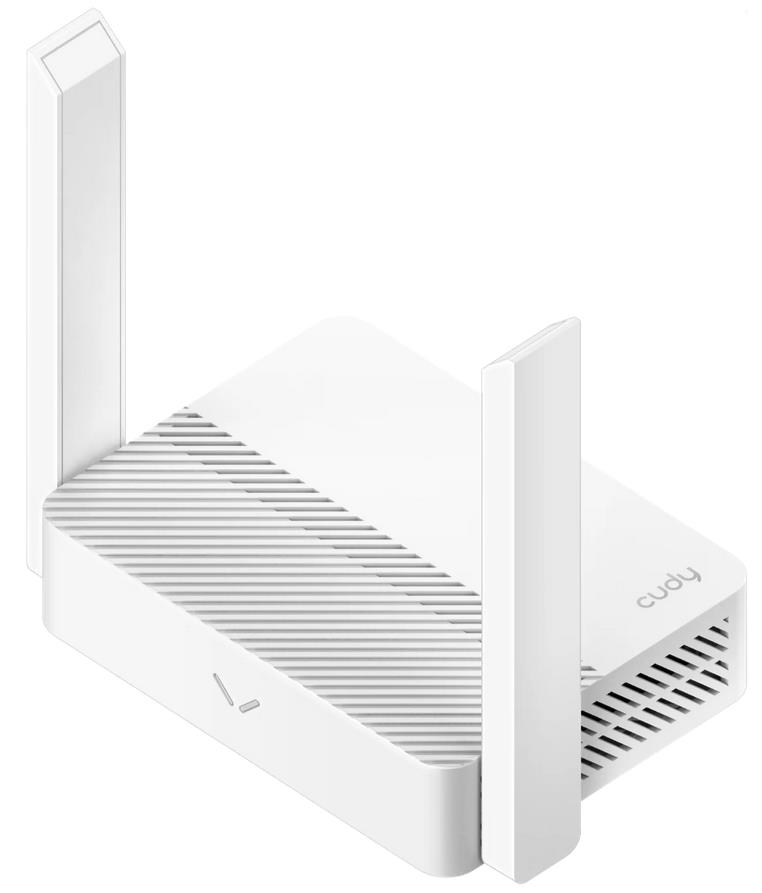

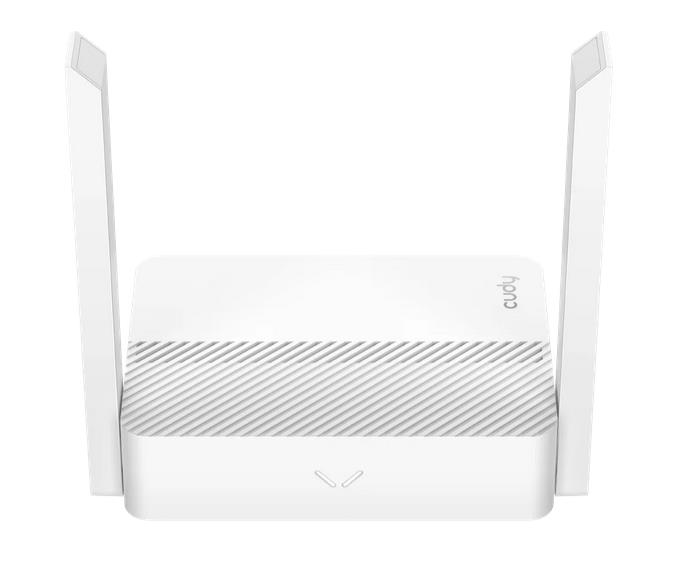

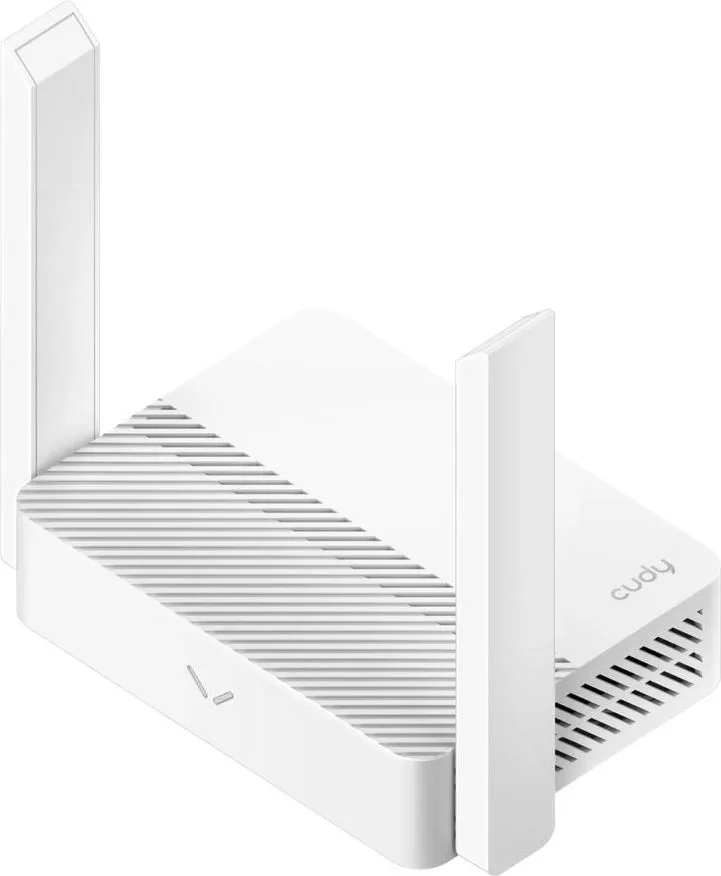

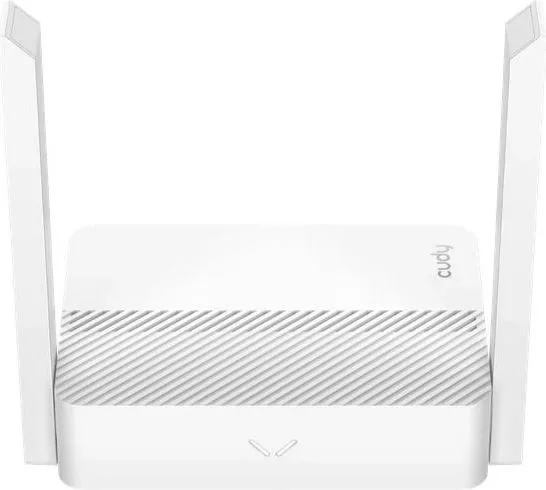

A 4G WiFi router with one nano SIM slot and two Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.4G Cat. 4 with Max 150 Mbps DL300 Mbps Wi-Fi 11× Nano SIM SlotVPN Server and ClientCudy App, Cloud Control
Model Version
LT300 2.0
CPU
CPU
Chipset
MT7628
CPU Details
580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage
Flash/ROM
8 MB (64 Mbit ) NOR
DDR/RAM
64 MB (512 Mbit) DDR2
Cellular
Cellular
Cellular Standards
4G Cat. 4
Cellular Antennas
2× Fixed
SIM Options
1× Nano SIM Slot
Available Versions
EU
EU Version Cellular
EU Version Cellular
Suitable Region
Europe, Middle East, Africa
Max DL Speed
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced
DL 2×2 MIMO
Cellular Bands
LTE-FDD: B1/3/5/7/8/20/28LTE-TDD: B38/40/41WCDMA: B1/5/8
Wireless
Wireless
2.4 GHz Wi-Fi Speed
300 Mbps
2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
Wi-Fi Antennas
2× Internal
2.4 GHz Antenna Gain Max
2.83 dBi
Range Performance
Max: 100 m (328 ft)Indoor WiFi range varies depending on the layout and wall materials. See
Wall Performance spec for placement suggestions.
Wall Performance
One wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 10 cm (4)
Interfaces
Interfaces

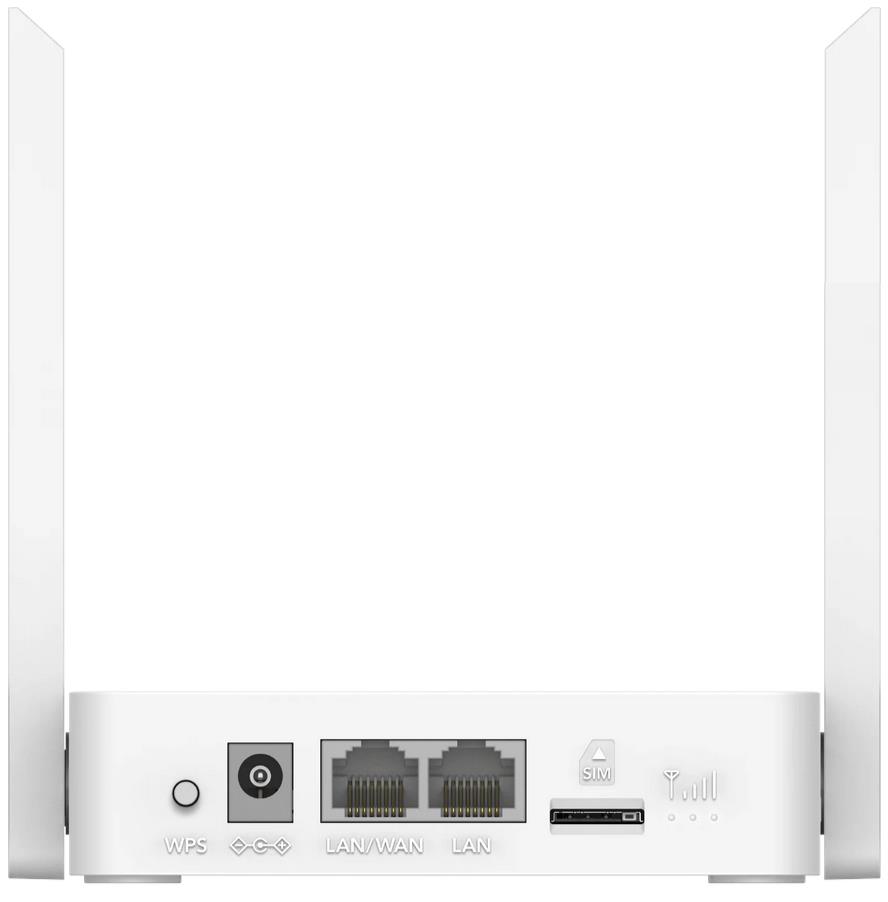

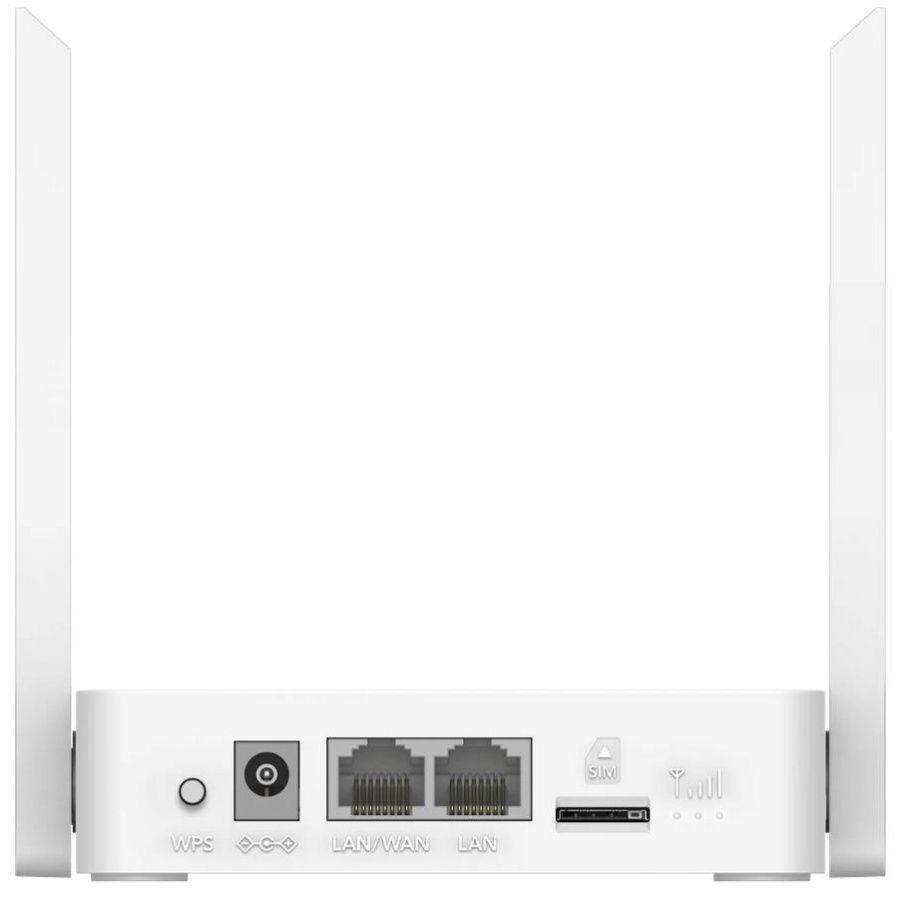

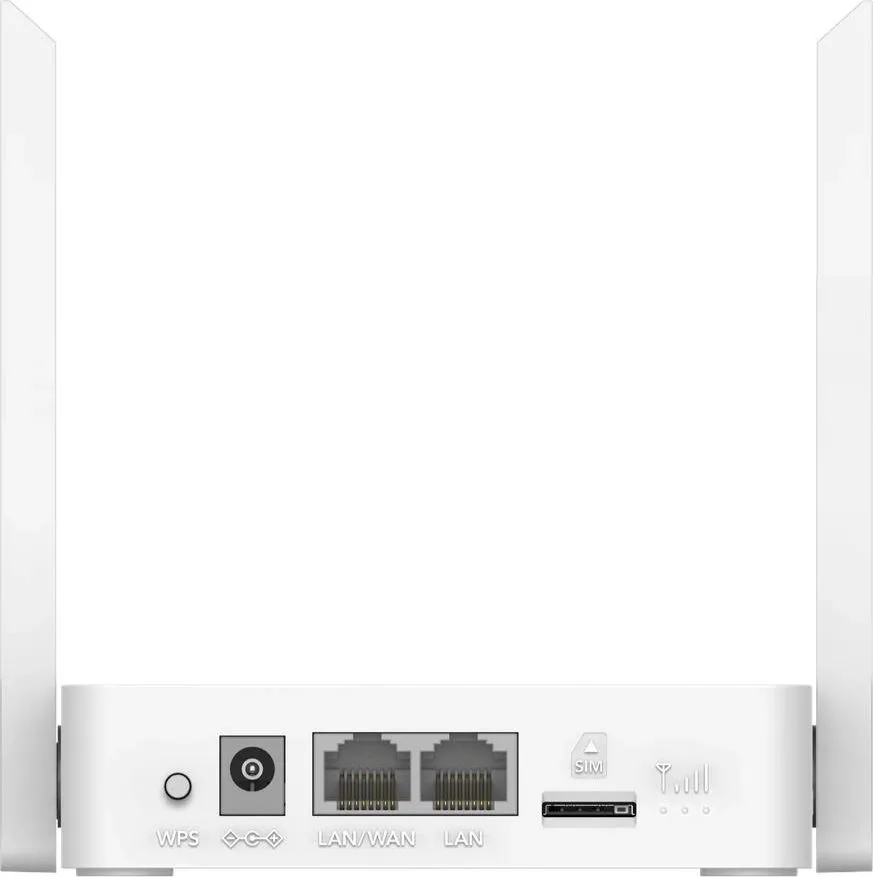

Physical ButtonsWPS Button Reset Button10/100 Mbps RJ45 Ports
2
Ethernet Notes
One port supports WAN/LAN configuration, and the rest are LAN ports
LEDSystem Cellular Signal StrengthPower Input
DC Jack
Power
Power
Power Methods
DC
DC
12V 1A

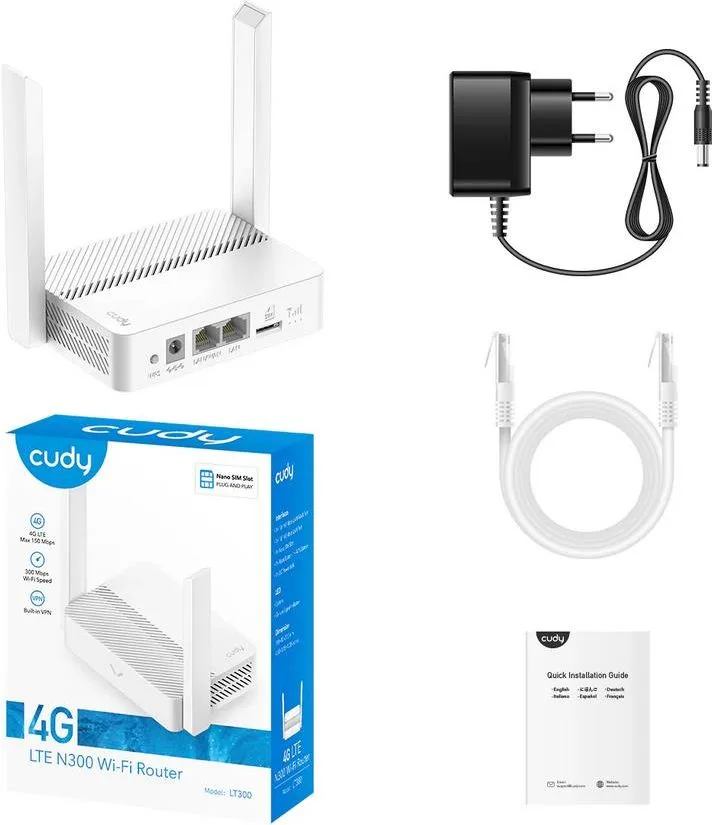

Power Adapter
Input: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1A DC
Max Power Consumption (W)
8W
Idle Power Consumption (W)
Wireless
Wireless
Wi-Fi Standards
Wi-Fi 4
Max Wi-Fi Modulation
64-QAM
Max Capacity
64
Recommended Client Upper Limit
30
Max Wi-Fi Channel Width
40 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz
WPS
True
General
General
Operation Modes
Cellular Router
Wi-Fi Router
WISP
Cellular APN
Band Select (Band Lock)
Cellular Mode Select
Data Roaming
APN Profile
Manual APN Profile
MBN
MTU Value
Cellular Mode
4G Only
3G Only
Auto
WAN Mode
DHCP
Static IP
PPPOE
L2TP
PPTP
Internet Failover Sequence
WAN
WISP
Cellular
Network
Network
QoS
Per-User Rate Limiting
DHCP
Address Reservation
DHCP Client List
Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay
Dynamic (SLAAC/DHCPv6)
Staic (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN
Bridge
Tag VLAN
TTL Customization
Extend
Spoof
Custom
IGMP
IGMP Proxy
IGMP Snooping
Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ
Firewall
SPI Firewall
DoS Protection
Block PING
Application Layer Gateway
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough
Utilities
Utilities
VPN Server
WireGuard
OpenVPN
PPTP
L2TP
VPN Client
WireGuard
OpenVPN
PPTP
L2TP
DNS Options
Manual DNS
Rebind Protection
Override Clients DNS
Online Detection
True
Management
Management
All Devices Management
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management
Intenent On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management
Domain Filter
IP Filter
System
System
Local Control Method
Config Web Page
App Control
Remote Control Method
App Control
Config Page via HTTP
Firmware Upgrade
Local Update
App (Over the Air)
Online Update
