Περιγραφή
● 4G LTE-Advanced Cat. 6, Max 300 Gbps Download● Faster 4G with DL 2CA Technologies● Speedy AC1200 Dual-Band Wi-Fi● Dual SIM Failover● WAN Failover● 4× Gigabit Ports● 4× Detachable Cellular Antennas● 2× Fixed WiFi Antennas
Model
4G LTE CAT 6 Wi-Fi Router
Data Speed
Wi-Fi
2.4GHz (802.11n/g/b, MIMO 300Mbps)
5GHz (802.11ac/an/a, MIMO 867Mbps)
LTE
LTE FDD: Max 300 Mbps (DL)/50Mbps (UL)
LTE TDD: Max 226 Mbps (DL)/28Mbps (UL)
3.9G (EU version)
DC-HSDPA: Max 42 Mbps (DL)/ HSUPA: Max 5.76 Mbps (UL)
WCDMA (EU version)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
Hardware
CPU: Mediatek Dual Core 880MHz
DRAM: 128 MB DDR3 (1 Gbit)
Flash: 16 MB NOR (128 Mbit)
4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN
2 x SIM Slots (Nano)
1 x WPS Btton
1 x Reset Button
2 x Fixed WiFi Antennas
4 x Detachable Cellular Antennas
LED indicators (Power,WiFi,Internet,Signal)
Software
DHCP:Server, Client List, Address Reservation
NAT:Port Forwarding, Port Triggering, UPnP, DMZ
Firewall:Mac Filter, IP Filter, Domain Filter
DDNS:Compatible with 20 more DDNS providers
VPN Client:PPTP/L2TP/OpenVPN/WireGuard
DNS over TLS: Cloudflare/NextDNS/Google
Schedule: Schedule Reboot /Wi-Fi Schedule
Internet Protocol version 4 or 6 (IPv4/IPv6)
Quality of Service (QoS)
TTL configuration(Extend/Spoof)
Band Selection
Cellular Band
EU Version
Module: EG060K-EA (Qualcomm)
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41/B42/B43
WCDMA: B1/B3/B5/B8
US Version
Module: EG060K-NA (Qualcomm)
LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD: B41/B48
Physical
Product Dimension: 253×152.5×48.2mm (LxWxH)
Package Dimension: 415x265x90mm (LxWxH)
Power
AC Power Adapter: Input: 90~260V Output: 12V, 1.5A
DC input (12V-1.5A) Barrel Plug
SMS
Send Message
Receive Message
USSD
Environmental
Operation Temperature: 0° C to +45° C
Storage Temperature: -40° C to +70° C
Relative Humidity: 5% to 95% Non-Cond

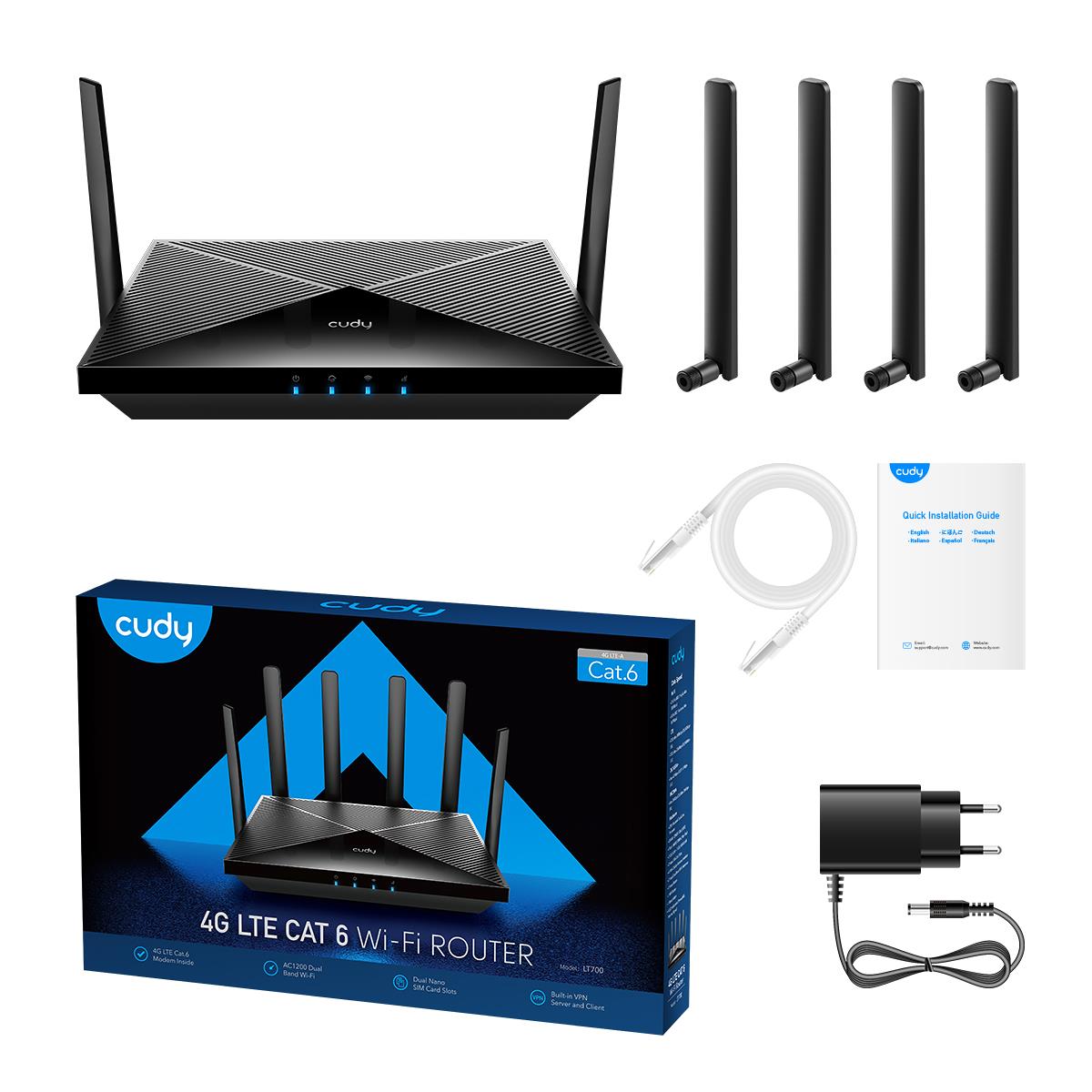

Package Contents
4G LTE WiFi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows
98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux,
Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled
browser Subscription with an internet service provider (for
internet access)
