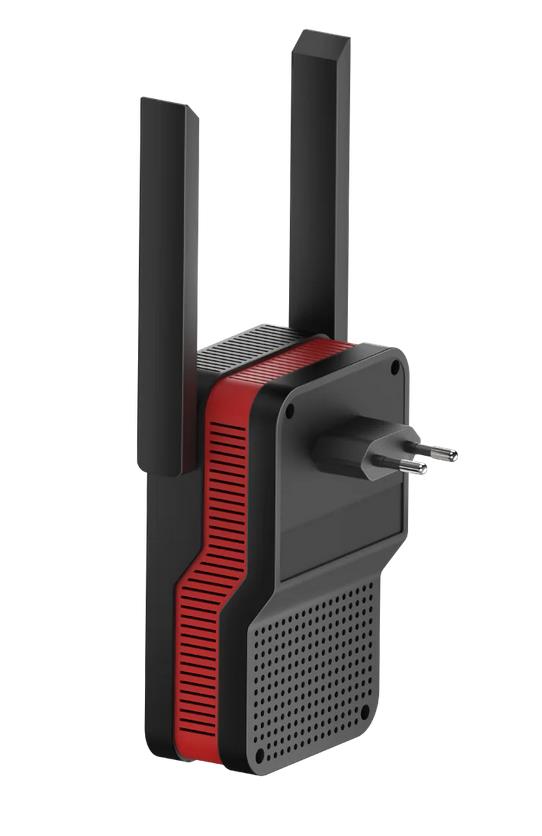

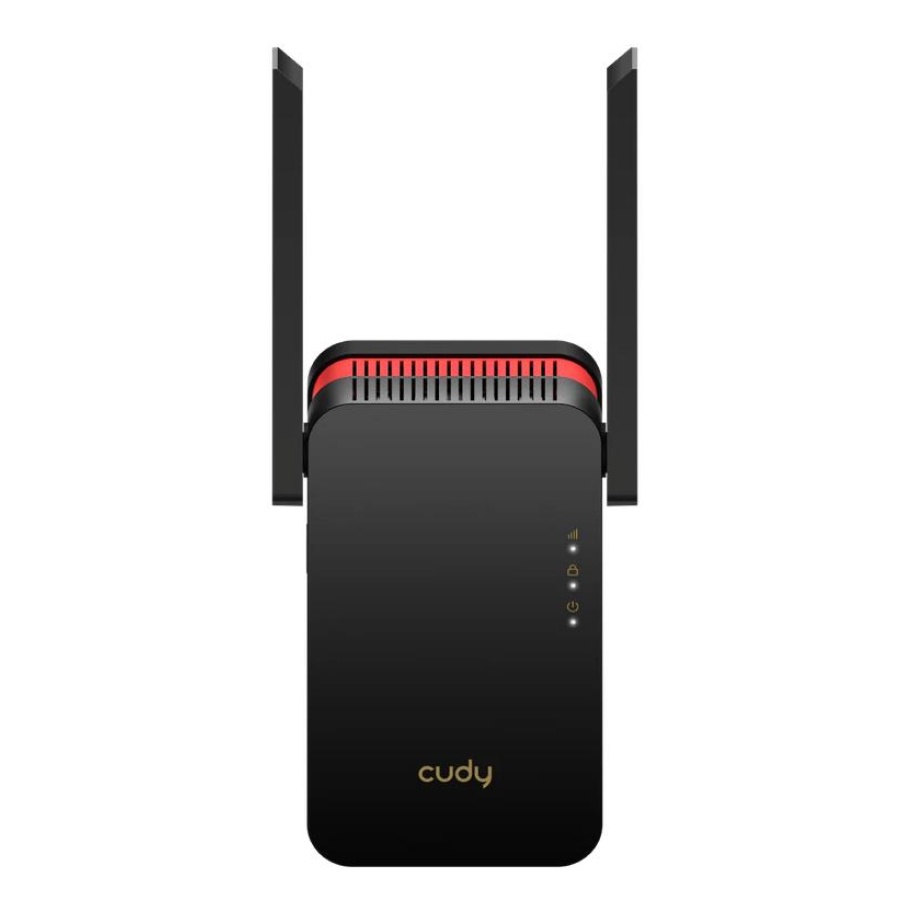

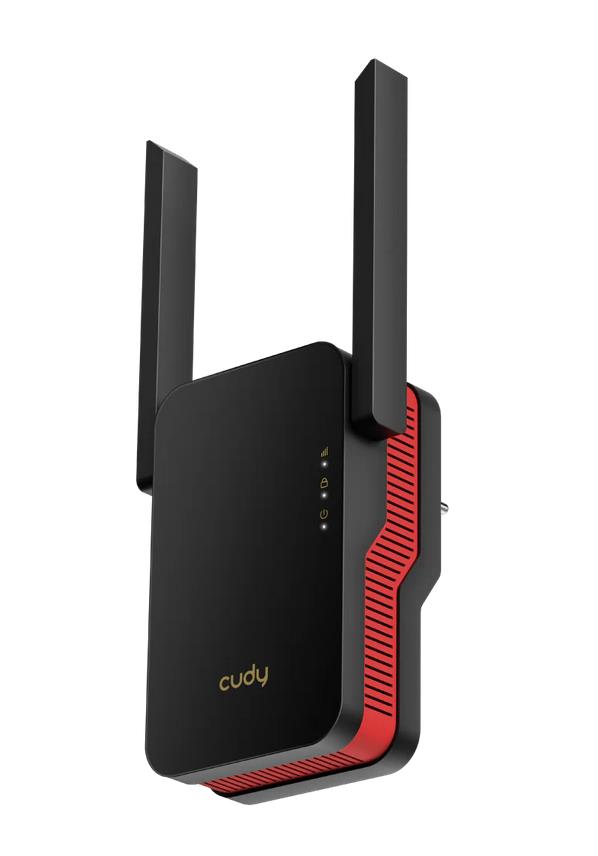

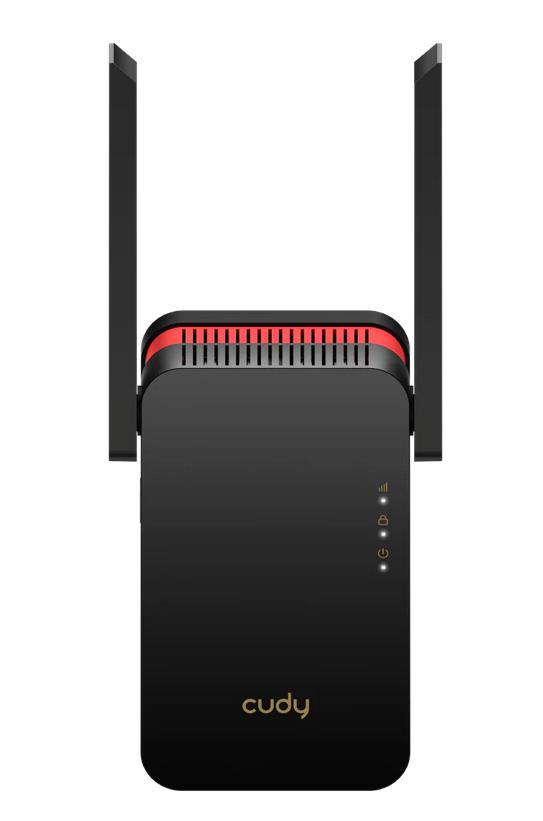

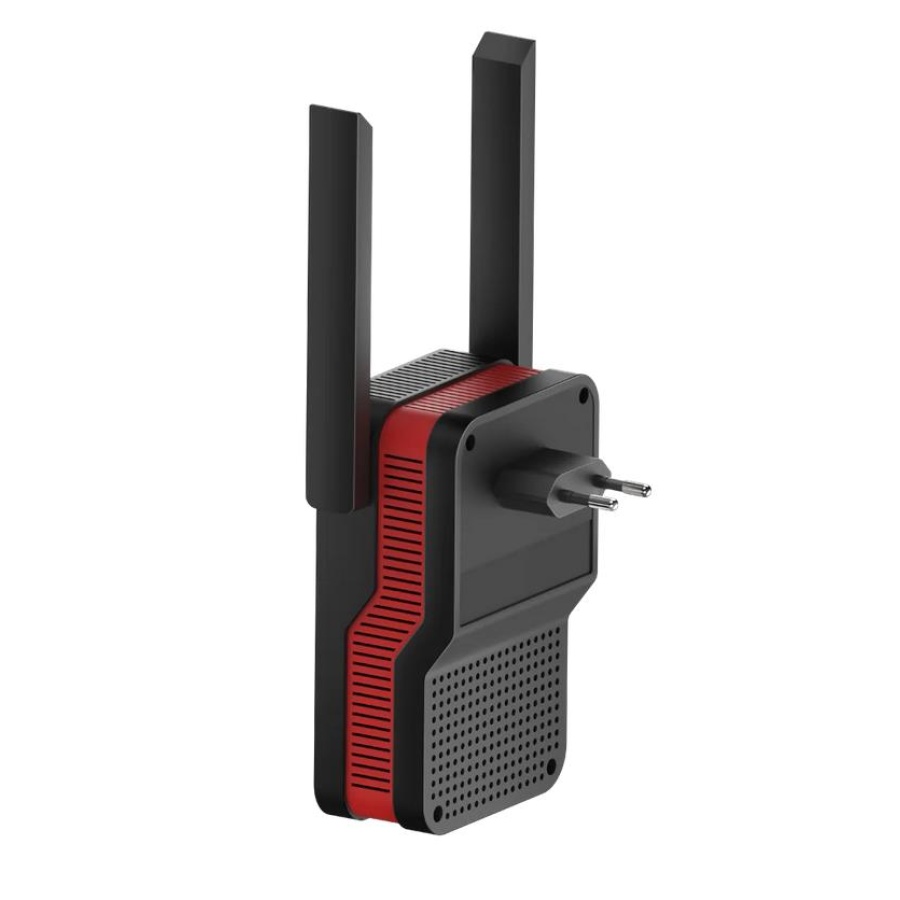

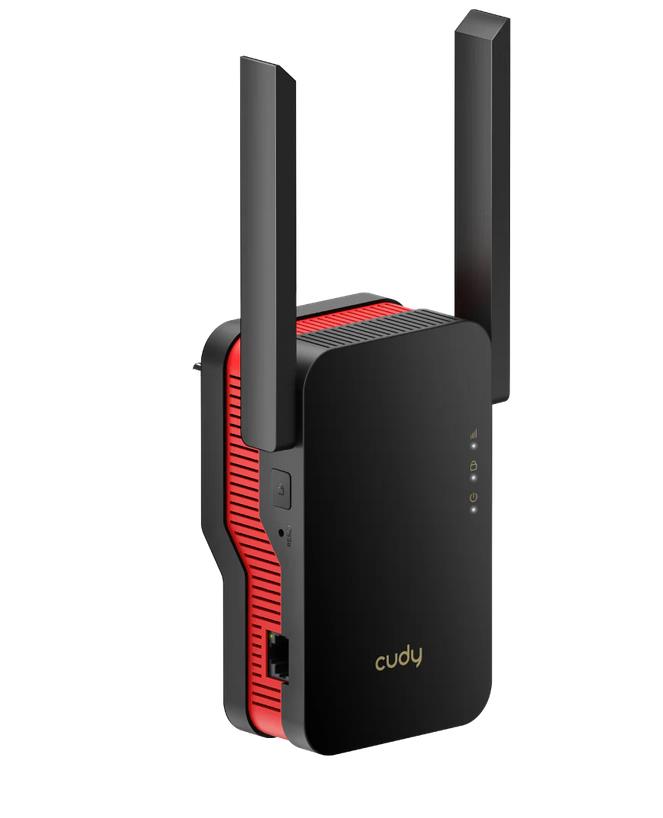

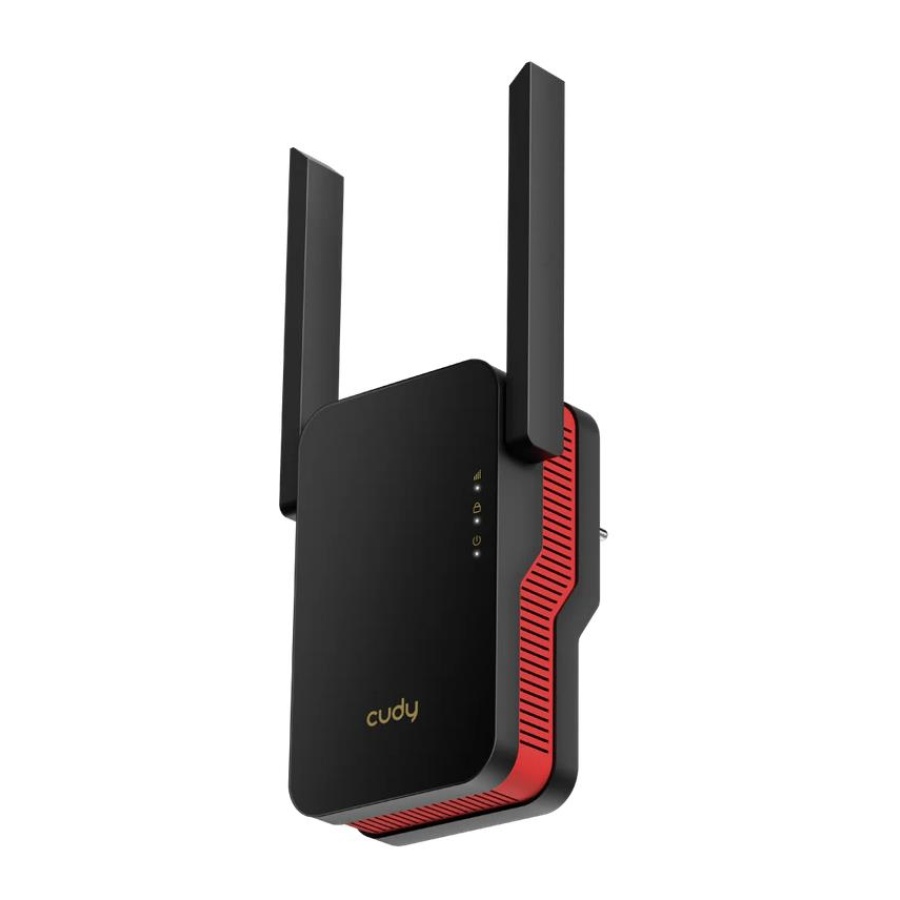

A range extender featuring high-capacity AX3000 WiFi 6 and a Gigabit Ethernet port. Press WPS buttons to expand existing Wi-Fi instantly.Works with Any Wi-Fi RouterDual-Band Wi-Fi 61× Gigabit Ethernet Port50 Connected Devices 1Cudy Mesh SatelliteMulti-Band Simultaneous BackhaulEthernet Backhaul
Wi-Fi Standards
Wi-Fi 6
Max Wi-Fi Modulation
1024-QAM
Wi-Fi Efficiency
OFDMA
MU-MIMO
BSS Color
Max Capacity
512
Recommended Client Upper Limit
50
Max Wi-Fi Channel Width
160 MHz
Wi-Fi Security
WPA-PSK (WPA/WPA2/WPA3)
WPS
true
General
General
Operation Modes
Access Point
Range Extender
Mesh
Cudy Mesh Satellite
Mesh Backhaul
Wireless Backhaul
Wired Backhaul
Multi-Band Backhaul
true
System
System
LED Control
true
Local Control Method
Config Web Page
App Control
Remote Control Method
App Control
Firmware Upgrade
Local Update
App (Over the Air)
Online Update
Reliability
Timed Reboot
Backup and Restore
Wireless
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
Wi-Fi Antennas
2× Fixed, 1 × Internal
2.4 GHz Antenna Gain Max
2.1dBi
5 GHz Antenna Gain Max
3.9dBi
FEM or PA/LNA
5 GHz: 3× Internal
2.4 GHz: 2× Internal
Range Performance
Max: 150 m (492 ft)Indoor WiFi range varies depending on the layout and wall materials. See
Wall Performance spec for placement suggestions.
Wall Performance
One wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7)
