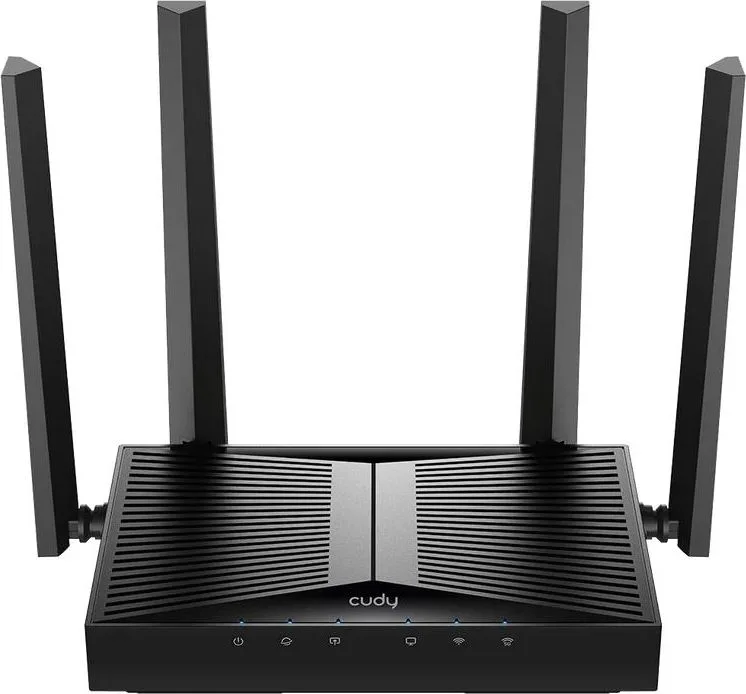

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and five Gigabit ports, catering to gaming and entertainment scenariosBroadcom 2 GHz Quad-Core CPU4-Stream Dual-Band Wi-Fi 72880 Mbps + 688 Mbps Wi-Fi 15× Gigabit Ethernet PortsCovers 130 m² (1,400 ft²) 2VPN Server and ClientCudy App, Cloud ControlActual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
Model Version
Model Version
WR3600 1.0
CPU
CPU
Chipset
BCM6764
CPU Details
2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR3L
Wireless
Wireless
5 GHz Wi-Fi Speed
2880 Mbps
2.4 GHz Wi-Fi Speed
688 Mbps
5 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
Wi-Fi Antennas
4× Fixed
5 GHz Antenna Gain Max
5.5dBi
2.4 GHz Antenna Gain Max
5.4dBi
FEM or PA/LNA
5 GHz: 2× External
2.4 GHz: 2× Internal
Beamforming
True
Range Performance
Max: 240 m (787 ft)Indoor WiFi range varies depending on the layout and wall materials. See
Wall Performance spec for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)
Interfaces
Interfaces
Gigabit RJ45 Ports
5
Ethernet Notes
1× WAN port, the rest are LAN ports
LED
Power
Internet
WAN
LAN
2.4 GHz Wi-Fi
5 GHz Wi-Fi
Physical Buttons
WPS Button
Reset Button
Power Input
DC Jack
Power
Power
Power Methods
DC
DC
12V 1A
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1A DC
Max Power Consumption (W)
9W
Reliability
Reliability
Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications
FCC, CE
Mechanical
Mechanical
Installation
Desktop
Wall-mount
Dimension
183.3×109×38 mm7.22×4.29×1.5 inches
Package Content
Package Content
WR3600
Power Adapter
Ethernet Cable
Installation Guide
Ordering Information
Ordering Information
Retail Package Dimension
330×256×60 mm12.99×10.08×2.36 inches
Units per Carton
10
Carton Dimension
52.8×31.7×34.7 cm20.79×12.48×13.66 inches
Wi-Fi Standards
Wi-Fi 7
Max Wi-Fi Modulation
4K-QAM
Wi-Fi Efficiency
MLO
MRU
Puncturing
OFDMA
MU-MIMO
BSS Color
Max Capacity
512
Recommended Client Upper Limit
200
Max Wi-Fi Channel Width
160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz, 5 GHz
WPS
True
General
General
Operation Modes
Wi-Fi Router
Access Point
Multi-Band Backhaul
true
WAN Mode
DHCP
Static IP
PPPOE
Notes
The Range Extender/WISP/Client modes will be available with later firmware upgrade. Cudy Mesh and related backhaul features will be available with later firmware upgrade.
Network
Network
QoS
Per-User Rate Limiting
DHCP
Address Reservation
DHCP Client List
Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay
Dynamic (SLAAC/DHCPv6)
Staic (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN
Bridge
Tag VLAN
TTL Customization
Extend
Spoof
Custom
IGMP
IGMP Proxy
IGMP Snooping
Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ
Firewall
SPI Firewall
DoS Protection
Block PING
Application Layer Gateway
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough
Utilities
Utilities
VPN Server
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
VPN Client
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
DNS Options
DNS over TLS
Manual DNS
Rebind Protection
Override Clients DNS
DNS over TLS Providers
Cloudflare
Google
Quad9
Custom
Wake on LAN
True
Online Detection
True
Management
Management
All Devices Management
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management
Intenent On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management
Domain Filter
IP Filter
System
System
LED Control
ture
Local Control Method
Config Web Page
App Control
Remote Control Method
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR181
Firmware Upgrade
Local Update
App (Over the Air)
Online Update
Reliability
Timed Reboot
Backup and Restore
Diagnostic Tools
Diagnosis
Ping
Traceroute
NSLookup
System Log
Dashboard
Dashboard
Panel
Internet Status
Devices Management
WAN Status
LAN Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version
Charts
Internet Speed
Wi-Fi Speed
