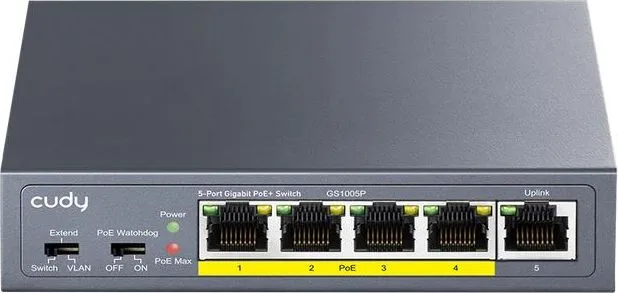

Cudy GS1005P 5-PORT Gigabit Poe+ Switch With 1 SFP Port 120W

A wall-mounted PoE switch with a 65W power supply and a silent cooling system.

4× GbE with 802.3at/af Mode A PoE

Model Version GS1005P 2.0 Interfaces Interfaces Physical Buttons VLAN/Default/Extend DIP Switch Watchdog Switch Gigabit RJ45 Ports 1 Gigabit RJ45 PoE Ports 4 Max Power on a Single PoE Port 30W PoE Port Notes PoE ports support 802.3at/af standards.

Newly added client devices will not affect the power supply to the already-on client devices. Extend Mode Ports #1~#4 VLAN Mode Ports #1~#4 LED Power Link/ACT/PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status Power Input DC Jack Performance Performance Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports. MAC Address Table 2048 Max Switching Capacity 10 Gbps Max Forwarding Rate 7.44 Mpps Jumbo Frame 15 KB Packet Buffer 3 Mbit Power Power Power Methods DC DC 54V 1.11A AC Input: 100 V - 240 V, 50 Hz

Output: 52 V, 1.25 A Max Power Consumption 60W Max Power Excluding PoE 5W Switching Switching 802.3 Protocols 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE Port Management Watchdog Port Management Note The Watchdog will attempt to reboot the plugged-in but inactive client. Do not turn it on when the clients are upgrading themselves. L2 Features IGMP Snooping Loop Prevention Loop Detection Reliability Reliability Grounding Methods Three-Prong Plug Lightning/Surge Protection GbE: DM 2kV, CM 4kV ESD Contact Protection 6kV ESD Air Protection 8kV Environment Operating Temperature: 0~40 ℃ (32~104 ℉)

4.69×3.35×1.1 inches Product Weight 253.0 g (8.92 oz.) Casing Material Metal Installation Desktop Wall-mount
