Περιγραφή
IEEE 802.3af / 802.3at standard compliant200-watt total PoE power budget, up to 30-watt per port16xGbE PoE+Port+2 x SFP PortCCTV Mode supports remote power&data feeding up to 250MVLAN mode supports 16 POE+ ports isolated from each otherLED indicators for network diagnostics19-inch metal case, internal power design
Model

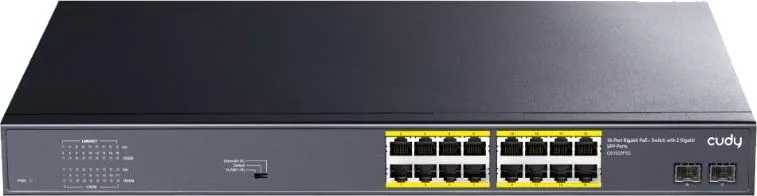

GS1020PS2
Connector Type
16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports
Network Media (Cable)
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
IEEE802.3z
PoE Parameters
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port：30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media
10BASE-T: Cat 5E UTP(≤250 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification
Bandwidth: 52Gbps
MAC: 8K
Packet Buffer Memory: 4M
Packet Forwarding Rate: 38.7Mpps
Power Supply
Power input: AC100-240V 50/60Hz, Power Budget: 200W
LED Indicator
PWR
Power supply indicator (Red)
Lighting：Powered
Un-Light：No Power
1-26
RJ-45 LINK indicator (Green)
Lighting：1000M Connect
Un-Light：100M or Disconnect
1-26
RJ-45 ACT indicator (Green)
Lighting：Connecting
Flashing：Data Transmit
Un-Light：Disconnect
Working Environment
Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 80℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
