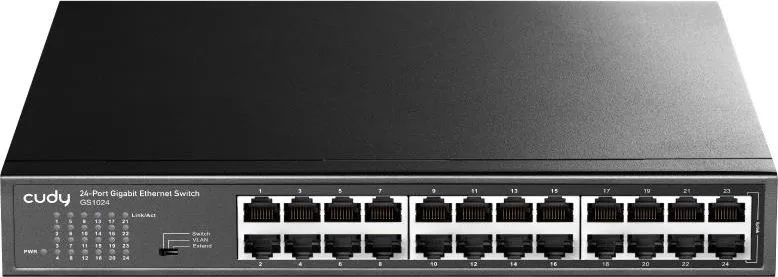

Cudy GS1024 24-PORT Gigabit Metal Switch

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning and auto-agin

Product Name24-Port Gigabit Ethernet Switch Product Model GS1024Power Supply Built-in power supplyVoltage RangeAc100~ 240VConsumption<15WSpeed1-24 Port: 10/100/1000MbpsTransmission Distance100Meter (328ft)Ethernet StandardIEEE  802.3/802.3u / 802.3abSwitching capacity48GMACAddress8K MAC address tableDimension L* W * H270 x 180 x 44mmVLAN (1-22Ports)Port IsolationDownlink designated ports are isolated from each other, only transmit data with the uplink port.DefaultStandard SwitchAll ports communicate freelyExtend (1-22Ports)Link ExtensionThe specified port speed drops to 10Mbps, max transmission distance is 250 meters.LINK/ACTOnGreenThe port is connectingBlinks/The port is receiving or transmitting dataOff/The port is not linked successfully with the deviceTransfer Rate14,880 pps for 10Mbps148,800 pps for 100Mbps148,8000 pps for 100MbpsEnvironmentOperating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~70℃ Operating Humidity: 10%~85% non-condensing Storage humidity: 5%~85% non-condensing
