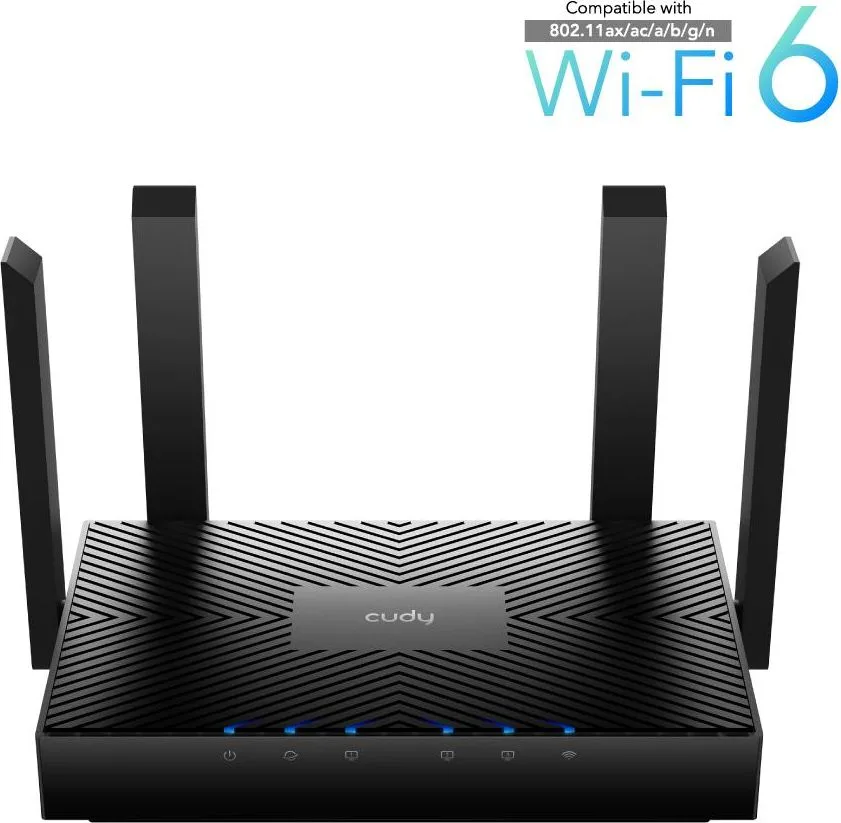

Cudy WR3000 AX3000 Gigabit Wi-Fi 6 Router, Mesh, Mimo, Ofdma, Beamforming

Super-Fast AX3000 Wi-Fi 6

1.3 GHz Dual-Core Cortex-A53 CPU

4× 10/100/1000Mbps Ethernet Ports

160 MHz Channel Width

DL/UL OFDMA and DL/UL MU-MIMO

Wireguard/OpenVPN/L2TP/PPTP VPN Server and Client

Cudy Mesh

IPv4/IPv6,

Wi-Fi Router

When Internet access from DSL or cable modem is available for one user but more users need to share the Internet, please use the Router Mode.

Wi-Fi Extender

The Wi-Fi Extender (repeater) mode extends your Wi-Fi coverage to hard-to-cover area. *Requires firmware 1.15.5+

Wireless AP

Wireless AP mode is more used to transfer wired connection into wireless. Usually, it is behind a router and doesnt has a DHCP

server.

WISP

WISP extends Wi-Fi but creates a subnet for connected devices, so its safer than extender mode. *Requires firmware 1.15.5+

VPN Server and Client

Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1)

DNS Encryption

Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad9.

Supports Cudy Mesh to enable seamless roaming for whole home with other Cudy Mesh devices.

Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Easier Combos in Games

The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use.

ModelWR3000Hardware FeaturesProcessor1.3 GHz Dual-Core ARM Cortex-A53 CPUFlash / DDR16 MB NOR / 256 MB DDR3Antennas4 × Fixed Omnidirectional AntennasEthernet Ports1 × 10/100/1000 Mbps WAN Port3 × 10/100/1000 Mbps LAN PortsButtonsWPS Button, Reset ButtonExternal Power Supply12 V / 1 ADimensions (W x D x H)

180*107*35 mm (Not Include Antennas)

200*117*35 mm (Include Antennas)

Wireless FeaturesWireless StandardsIEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHzWireless Frequency5 GHz, 2.4 GHzWireless Bandwidth20/40/80/160 MHzSignal Rate2402 Mbps (5 GHz), 574 Mbps (2.4 GHz)Compatible with 802.11a/b/g/n/ac Wi-Fi standards

Transmit PowerCE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)FCC: <30d Bm (2.4 GHz & 5 GHz)Wireless ModesEnable/Disable Wireless Radio, WMMWireless securityWPA-PSK, WPA2-PSK, WPA3-SAE WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAEOther FeaturesUL/DL OFDMA, UL/DL MU-MIMO, Beamforming, MeshSoftware FeaturesVPN Server and ClinetWireguard/OpenVPN/L2TP/PPTP DNS over TLSCloudflare/Google/Quad9 WAN TypeDynamic IP/Static IP/PPPoEDHCPServer, DHCP Client List, Address ReservationDynamic DNSCompatible with 15 more DDNS providersGuest Network2.4 GHz guest network × 15 GHz guest network × 1NATPort Forwarding, Port Triggering, UPnP, DMZOthersPackage ContentWi-Fi RouterPower AdapterRJ45 Ethernet CableQuick Installation GuideEnvironmental Requirements

Windows, macOS, Android, iOS, or other OS with networking capability

Firefox, Chrome, Safari, Edge, or other up-to-date web browsers

Cable/DSL/ONT modem or other internet source devices

Internet subscription with ISP or carriers
