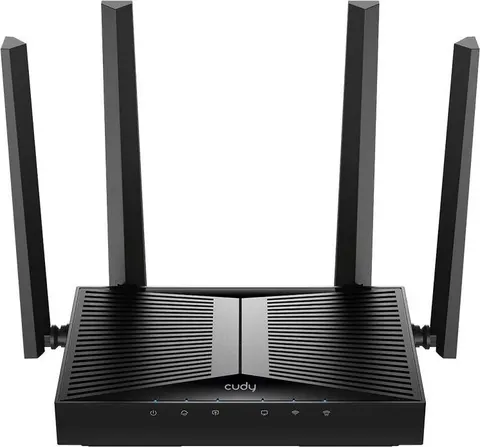

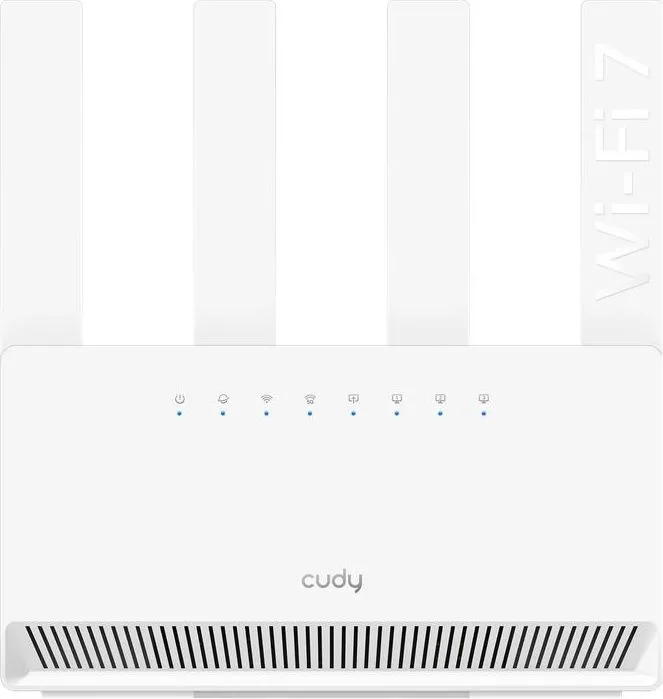

Cudy BE3600 Gigabit Wi-Fi 7 Router

A dual-band Wi-Fi 7 router providing the MLO speed aggregation feature, ideal for latency-sensitive, speed-demanding scenarios.
Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mbps + 688 Mbps Wi-Fi 1
4× Gigabit Ethernet Ports
200 Connected Devices 2
Covers 130 m² (1,400 ft²) 3
VPN Server and Client
Cudy App, Cloud Control D

CPUChipsetBCM6764CPU Details2.0 GHz Quad-Core, ARM Cortex-A7Memory/StorageFlash/ROM128 MB (1 Gbit) NANDDDR/RAM512 MB (4 Gbit) DDR3LWireless5 GHz Wi-Fi Speed2882 Mbps2.4 GHz Wi-Fi Speed688 Mbps5 GHz Wi-Fi Streams2T2R (2×2 MIMO)2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)Wi-Fi Antennas4× Fixed5 GHz Antenna Gain Max6.8dBi2.4 GHz Antenna Gain Max5.2dBiFEM or PA/LNA5 GHz: 2× External2.4 GHz: 2× InternalBeamformingTRUERange PerformanceMax: 220 m (722 ft)Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.Wall PerformanceTwo wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)InterfacesGigabit RJ45 Ports4Ethernet Notes1× WAN port, the rest are LAN portsLEDSystemInternet2.4 GHz Wi-Fi5 GHz Wi-FiWANLANPhysical ButtonsWPS ButtonReset ButtonPower InputDC JackPowerPower MethodsDCDC12V 1APower AdapterInput: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1A DCMax Power Consumption (W)8.5WWirelessWi-Fi StandardsWi-Fi 7Max Wi-Fi Modulation4K-QAMWi-Fi EfficiencyMLOMRUPuncturingOFDMAMU-MIMOBSS ColorMax Capacity512Recommended Client Upper Limit200Max Wi-Fi Channel Width160 MHzWi-Fi SecurityWPA/WPA2/WPA3Guest Network2.4 GHz, 5 GHzWPSTRUEGeneralOperation ModesWi-Fi RouterAccess PointMulti-Band BackhaulTRUEWAN ModeDHCPStatic IPPPPOEPPTPL2TPNotesThe Range Extender/WISP/Client modes will be available with later firmware upgrade.NetworkQoSPer-User Rate LimitingDHCPAddress ReservationDHCP Client ListServerIP VersionsIPv4/IPv6IPv6 ProtocolsRelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-LiteIPTV/VLANBridgeTag VLANVoIP VLANIPTV VLANTTL CustomizationExtendSpoofCustomIGMPIGMP ProxyIGMP SnoopingForwardingPort ForwardingPort TriggeringUPnPDMZFirewallSPI FirewallDoS ProtectionBlock PINGApplication Layer GatewayIPSec PassthroughL2TP PassthroughPPTP PassthroughFTP PassthroughTFTP PassthroughH323 PassthroughSIP PassthroughRTSP PassthroughUtilitiesVPN ServerWireGuardOpenVPNIPsecZerotierPPTPL2TPVPN ClientWireGuardOpenVPNIPsecZerotierPPTPL2TPDNS OptionsDNS over TLSManual DNSRebind ProtectionOverride Clients DNSDNS over TLS ProvidersCloudflareGoogleQuad9CustomWake on LANTRUEOnline DetectionTRUEManagementAll Devices ManagementWi-Fi Time ScheduleMAC FilterIP/MAC BindingPer-Devices ManagementInternet On/OffVPN On/OffOnline Time ScheduleDevice RenameContent ManagementDomain FilterIP FilterSystemLED ControlTRUELocal Control MethodConfig Web PageApp ControlRemote Control MethodConfig Page via HTTPSApp ControlTR069/TR098/TR111/TR181Firmware UpgradeLocal UpdateApp (Over the Air)Online UpdateReliabilityTimed RebootBackup and RestoreDiagnostic ToolsDiagnosisPingTracerouteNSLookupSystem Log
